Sight Glass

Sight Glass

جزئیات محصول

محل منبع: چین

نام تجاری: COWELL

شماره مدل: YJ6202,6203

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 2

جزئیات بسته بندی: کارتن سخت

زمان تحویل: 3-7 روز کاری

شرایط پرداخت: T/T

بهترین قیمت رو بدست بیار
حالا تماس بگیرید
مشخصات
برجسته کردن:

sight glass,Aluminum sight glass,plastic sight glass

,

Aluminum sight glass

,

plastic sight glass

مواد:
آلومینیوم، پلاستیک
اندازه:
3" و 4"
ضخامت:
28 میلی متر، 40 میلی متر، 50 میلی متر، 75 میلی متر
مواد:
آلومینیوم، پلاستیک
اندازه:
3" و 4"
ضخامت:
28 میلی متر، 40 میلی متر، 50 میلی متر، 75 میلی متر
توضیحات

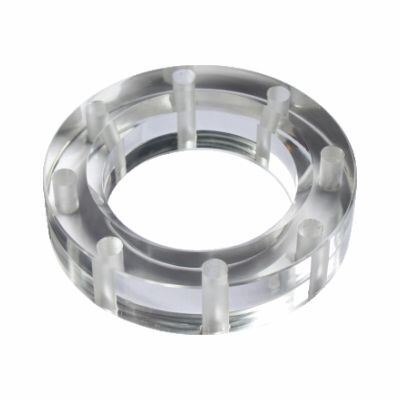

Sight Glass



Description



Sight glass flanges is installed between pipe outlet flange and API valve

to show if product is present and its color to confirm product identification.

The standard drilling is TTMA, different thickness is for your option.



Characteristics


  • Light and compact structure, easy to install and use
  • Main material is made of plastic or aluminum

  • Can check the transferring liquid

  • Flange meets TTMA standard

  • Pressure to 3000KPa

  • Max. temperature 70℃



Material


Body: Aluminum alloy

Mirror: Glass

Seal: NBR



 Technical Specification

 Model

 YJ6202A

YJ6202B

YJ6203A

YJ6203B

 Size

3"

4"

3"

4"

 Thickness

28mm/40mm

28mm/40mm

50mm

75mm

 Material

Plastic Plastic

Aluminum

Aluminum
