Pneumatic Control Block

جزئیات محصول

شرایط پرداخت و حمل و نقل

بهترین قیمت رو بدست بیار

حالا تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:
                                                                                    pneumatic control block valve,flow meter control block,pneumatic flow control block, flow meter control block, pneumatic flow control block


توضیحات

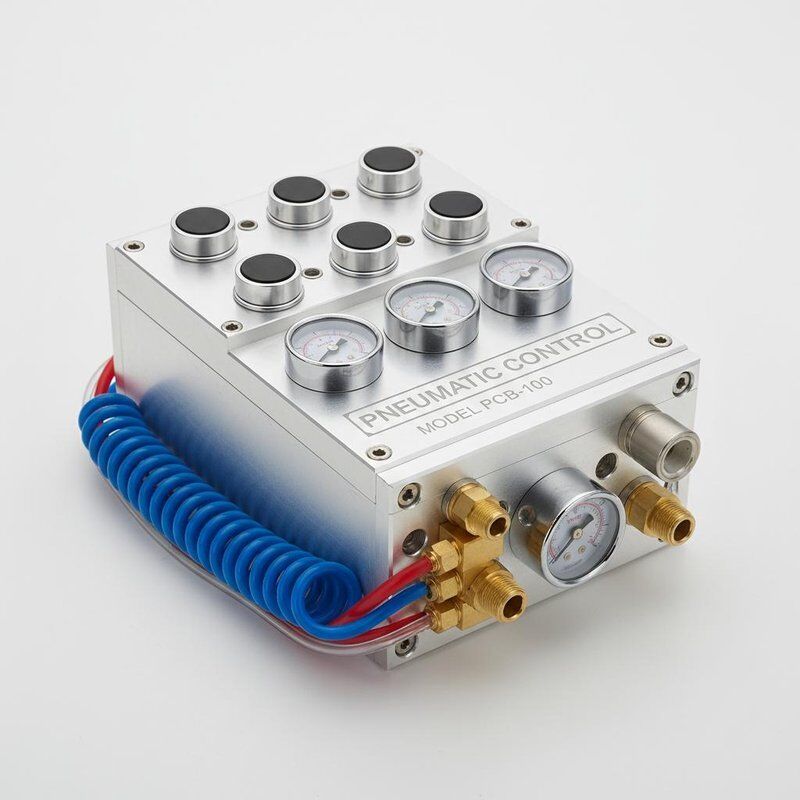

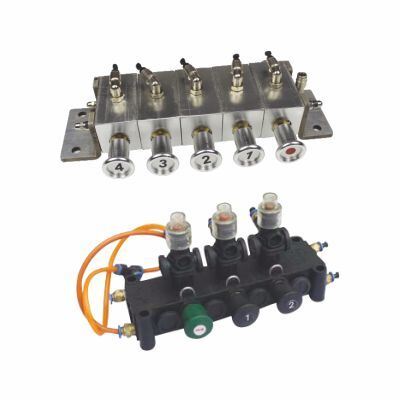

Pneumatic Control Block

Description

Pneumatic control block is the pneumatic central control installed on the tanker.

It controls emergency foot valve, vapor recovery valve, pipeline control valve, API

valve etc. It is available with remote control to cut off the valves under emergency.

It can be quick opened and closed by pneumatic control block to ensure the loading

and unloading more reliable.

Characteristics

Can be combined freely with different sections
Small, compact and robust
Easy to operate
Can not be opened when the air pressure is less than 0.3Mpa
Automatic closed if air leaked
1/4" NPT air lineholes
Sight glass to display open and close

Material

Body: Aluminum alloy, Plastic

Spring: Stainless Steel

Seal: NBR

Shaft: Stainless steel, Copper

Technical Specification
Model	YJ106	YJ107
Air pipe size	6mm
Working pressure	8 Bar
Operating mode	Pneumatic
Temperature	-20~70℃
Connection mode	Push-in
Medium	Air
Material	Plastic	Aluminum
